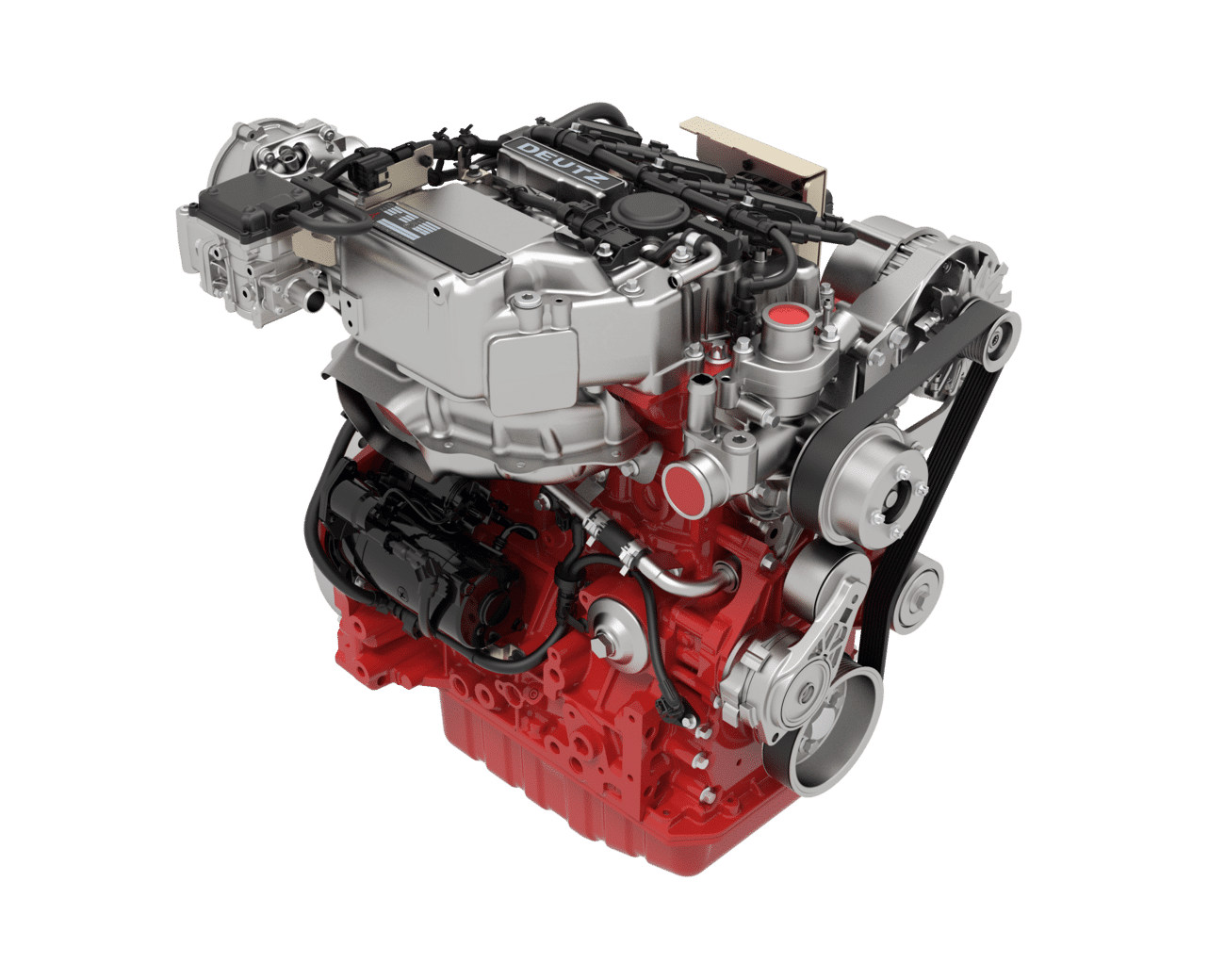

G 2.2 L3
KEY FEATURES
Newly-designed, water-cooled 3-cylinder spark ignited LPG engine.
- Robust engine design for demanding industrial applications based on the successful TCD 2.9 series.
- Full electonic controlled LPG gas system, stoichiometric combustion, closed loop control and knocking sensors for lowest emissions and best performance at the same time.
- Open EAT system (3 way catalyst) means 100% machine availability even under lowest load duty cycles.
- Same foot print and major installation interfaces as diesel engines TCD 2.2/2.9 for ease of installation in diesel and gas powered machines.
- Up to 1000 h oil change intervals, maintenance-free valve train and optionally service-friendly multi-V belt drive result in low maintenance cost and increased machine availability.
- The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications.
- 100% power take-off at flywheel and front end and additional side PTO drive with up to 120 Nm for the mounting of hydraulic pumps.
- Compact 3-way catalyst for future EU Stage V and EPA Tier 2 compliance.
Technical data
| Emission norms | US T2, EU V |
|---|---|
| Series | G 2.2/2.9 |
| Number of cylinders | 3 |
| Bore | 92 mm |
| Stroke | 110 mm |
| Displacement | 2.2 l |
| Maximum nominal speed | 2800 rpm |
| Power output | 41.5 kW |
| at speeds | 2800 rpm |
| Max. torque | 160 Nm |
| at speeds | 1600 rpm |
| Min. idling speed | 900 rpm |
| Length | 576 mm |
| Width | 647 mm |
| Height | 747 mm |
| Weight | 208 kg |
