TTCD 6.1 L6 (AGRI)
Product description

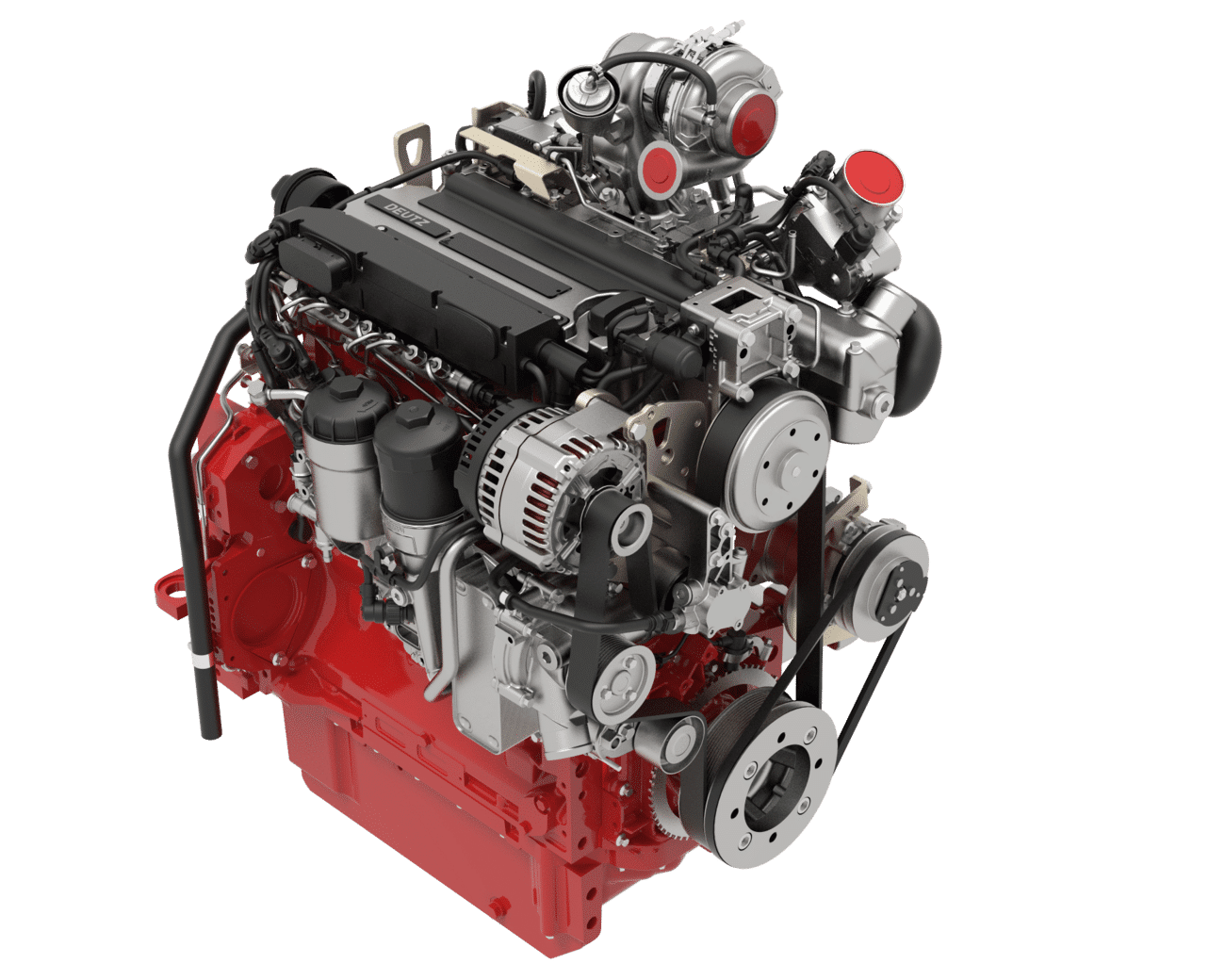

Engine for agricultural machinery. Water-cooled 6-cylinder inline engine with turbocharging, charge air cooling and cooled external exhaust gas recirculation.
These are the key features of the TCD 6.1 L6 (AGRI)
- 6-cylinder optionally with two-stage turbocharging for the highest performance requirements.
- Engine and exhaust aftertreatment (EAT) are optimised for highest total system efficiency and thus ensure minimised fuel and total operating costs.
- The powerful DEUTZ Common Rail (DCR®) injection system and the electronic engine control (EMR 4) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
- 100% power take-off at flywheel and front end.
- The extremely compact engine design with structural oil pan and a customeroriented, modular system of optional add-on parts reduce the installation costs and increase the number of applications.
- Consistent installation and connection dimensions of the engine facilitate the changeover of existing installations to the next stage of the emission legislation.
- Best cold starting performance even under extreme conditions.
- Very smooth running due to optional mass balancing shafts (6 cylinder) guarantees a level of driving comfort.
- 500 h oil change intervals and easy changing of the engine fluids reduce the running costs and increase the availability of the machinery.
- The engines meet the requirements of the EU Stage IV and US EPA Tier 4 with DVERT® selective catalytic reduction (SCR) and particulate filter (DPF). Through the use of the DPF they already comply with the EU Stage V emissions standard expected from 2019.* A variant without EAT is available as an option for less regulated markets.
Technical data
| Kategori | Agricultural equipment, DEUTZ |
|---|---|
| Emission norms | US T4f, EU IV, EU V |
| Number of cylinders | 6 |
| Bore | 101 mm |
| Stroke | 126 mm |
| Displacement | 6.1 l |
| Maximum nominal speed | 2200 rpm |
| Power output kW | 211 kW |
| at speeds | 2100 rpm |
| Max. torque | 1226 Nm |
| at speeds | 1450 rpm |
| Min. idling speed | 800 rpm |
| Specific fuel consumption | 198 g/kWh |
| Length | 1077 mm |
| Width | 643 mm |
| Height | 1187 mm |
| Weight | 720 kg |
