TCD 12.8 L6

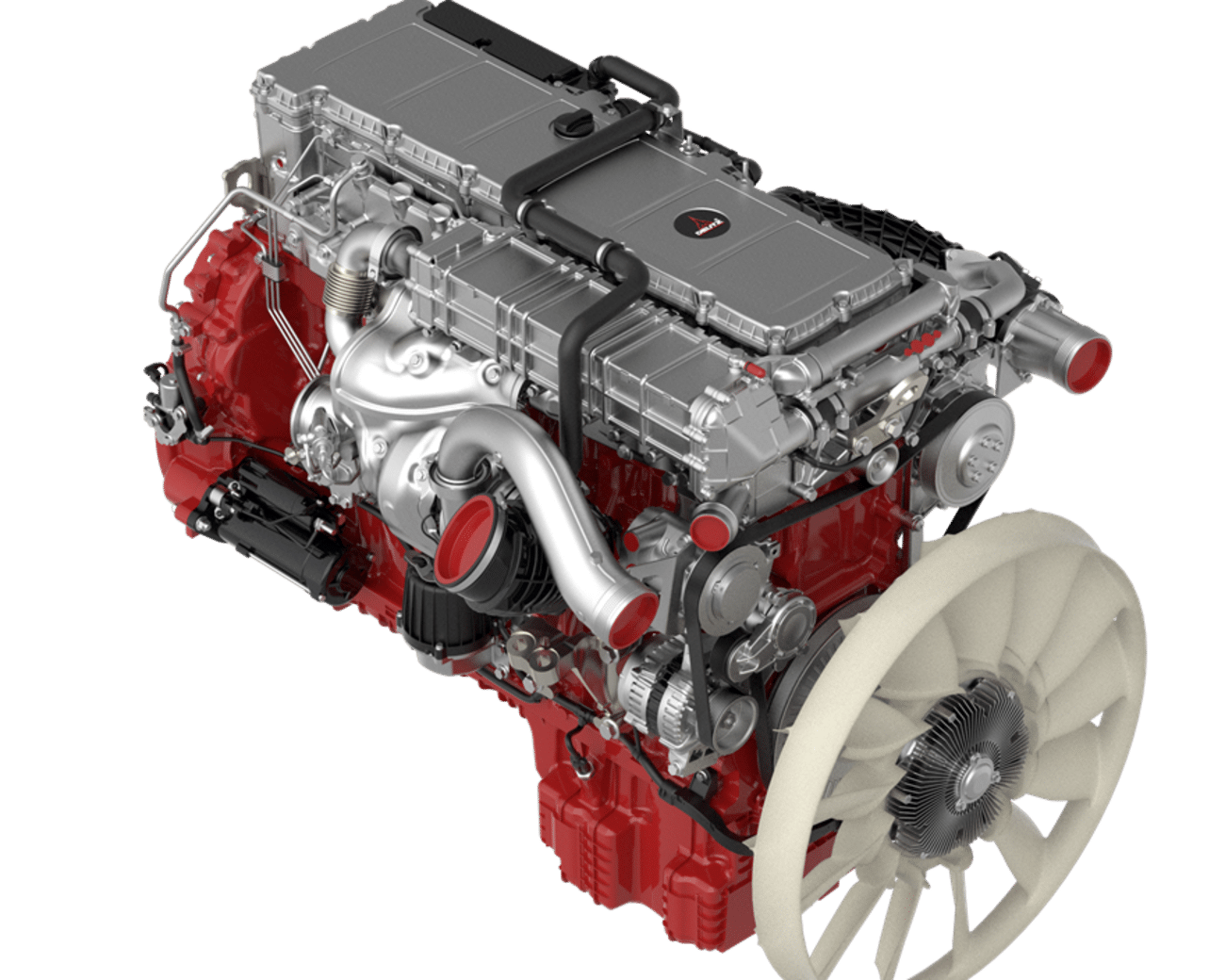

TCD 12.8 Diesel Engine – Up to 390 kW for Heavy Industrial Applications

The DEUTZ TCD 12.8 is a powerful and dependable diesel engine designed to meet the rigorous demands of heavy-duty industrial applications such as specialized vehicles, construction machinery, and heavy transport systems. Delivering an impressive maximum output of up to 390 kW, this engine combines top-tier performance with fuel efficiency, advanced exhaust aftertreatment, and robust engineering. Optimized for long service life, minimal maintenance, and high operational efficiency, the TCD 12.8 is a trusted choice for OEMs and operators seeking durability, low emissions, and reduced operating costs.

Key Features:

• Maximum Operational Performance: Proven reliability, low total cost of ownership, and outstanding energy efficiency. The engine boasts a superior power-to-weight ratio and is built to perform under extreme conditions.

• Low Emissions and High Cost Efficiency: Advanced combustion and effective aftertreatment ensure compliance with global emissions standards such as EU Stage V and US EPA Tier 4.

• Smart Electronics: The engine management system (MCM) and aftertreatment control module (ACM), combined with the CPC4 interface, deliver optimal torque, peak output, and reduced fuel consumption.

• Efficient Turbocharging: Single-stage turbocharging ensures optimal airflow to the combustion chamber, boosting performance and efficiency. The TTCD variant features two-stage turbocharging for higher torque at low RPMs and consistent power delivery across the full speed range.

• Advanced Fuel Injection: Electronically controlled common rail injection combined with turbocharging enables precise combustion, reduced emissions, and lower fuel usage.

• Internal Emission Reduction: Exhaust gas recirculation (EGR) significantly lowers NOx emissions and enhances the combustion process for greener operation.

• Compact Aftertreatment System: An integrated one-box solution with SCR, DPF, and dosing unit simplifies installation and saves space.

• Compatible with Renewable Fuels: The TCD 12.8 is fully compatible with synthetic and renewable fuels such as HVO and GTL in accordance with EN15940 – making it a future-ready and sustainable power solution.

Technical data
